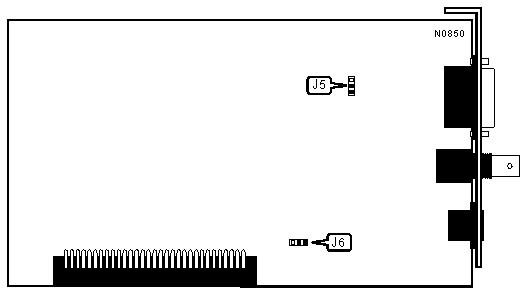

UNIDENTIFIED
ETHERMAC (NUBUS)
|
NIC Type: |
Ethernet |
|
Transfer Rate: |
10Mbps |
|
Data Bus: |
32-Bit NuBus (Apple) |
|
Topology: |
Linear Bus Star |
|
Wiring Type |
AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial Shielded/Unshielded twisted pair |
|
Boot ROM |
Not Available |
|
CABLE TYPE | |
|
Type |
J5 |
|
AUI transceiver via DB-15 port |
All pins open |
|
RG-58A/U 50ohm coaxial |
Pins 2 & 3 closed |
|
Shielded/Unshielded twisted pair |
Pins 1 & 2 closed |
|
10BASE-T STATUS | |
|
Setting |
J6 |
|
10BASE-T hub selected |
Pins 2 & 3 closed |
|
Pre-10BASE-T hub selected |
Pins 1 & 2 closed |
|
Note:J6 only applies when twisted pair cable is being used. | |
|
|
|
|
 |
|
