TIARA COMPUTER SYSTEMS, INC.

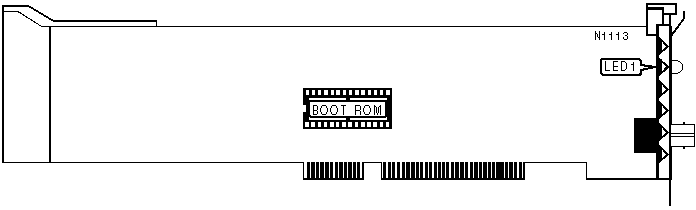

ARCNET LANCARD MC
|
NIC Type |
Arcnet |
|
Transfer Rate |
2.5Mbps |
|
Data Bus |
16-bit MCA |
|
Topology |
Star |
|
Wiring Type |
Fiber optic cable |
|
Boot ROM |
Available |
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
On |
Network connection is good |
|
LED1 |
Blinking |
Card is trying to locate the network |
|
LED1 |
Off |
Network connection is broken |
|
|
|
|
 |
|
