SK-4590, SK-4591 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / S / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
SK-4590, SK-4591 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
SYSKONNECT, INC.
SK-4590, SK-4591
|
Card Type |
Network Interface Card |
|
NIC Type |
Token Ring |
|
Maximum Onboard Memory |
128KB DRAM, 512KB DRAM (SK-4590 only) |
|
Boot ROM |
Unidentified |
|
Network Transfer Rate |
4/16Mbps |
|
Topology |
Star |
|
Wiring Type |
Shielded twisted pair Unshielded twisted pair |
|
Data Bus |
32-bit PCI |
|

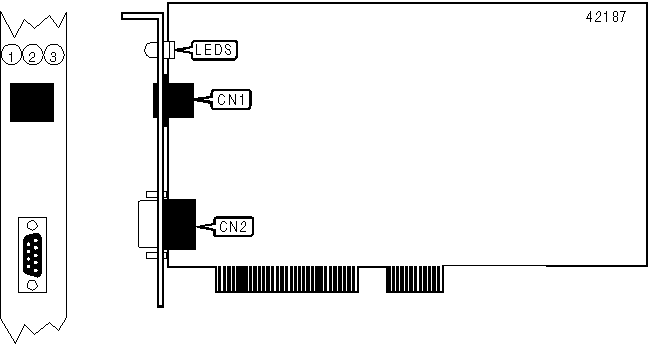

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
UTP via RJ-45 connector |
CN1 |
STP via DB-9 connector |
CN2 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Yellow |
On |
Data is being transmitted/received at 4Mbps |
|
LED1 |
Yellow |
Off |
Data is not being transmitted/received at 4Mbps |
|
LED3 |
Yellow |
On |
Data is being transmitted/received at 16Mbps |
|
LED3 |
Yellow |
Off |
Data is not being transmitted/received at 16Mbps |
|
Note: Exact color and function of LED2 are unidentified. | |||
|
|
|
|
 |
|
