pn0455 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / S / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
pn0455 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
SVEC computer corporation
pn0455
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
100Mbps/10Mbps |
|
Topology |
Linear Bus, Star |
|
Wiring Type |
Unshielded twisted pair, RG-58A/U 50ohm coaxial |
|
Data Bus |
32-bit PCI |
|

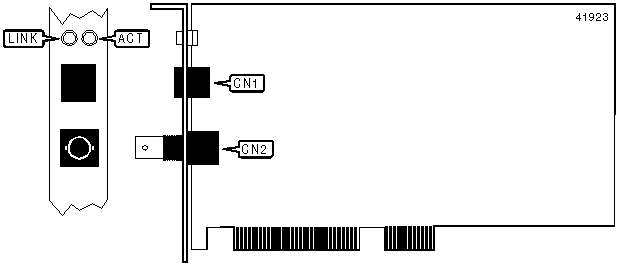

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Unshielded twisted pair |
CN1 |
RG-58A/U 50ohm coaxial |
CN2 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
ACT |
Yellow |
Blinking |
Data is being transmitted/received |
|
ACT |
Yellow |
Off |
Data is not being transmitted/received |
|
LINK |
Green |
On |
10Base-T Ethernet network connection is good |
|
LINK |
Green |
Off |
10Base-T Ethernet network connection is broken |
|
|
|
|
 |
|
