PCI ETHERNET ADAPTER Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
SVEC COMPUTER CORPORATION
PCI ETHERNET ADAPTER
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Unidentified |
|
Network Transfer Rate |
10Mbps (20Mbps in full duplex mode) |
|
Topology |
Linear Bus, Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Data Bus |
32-bit PCI |
|

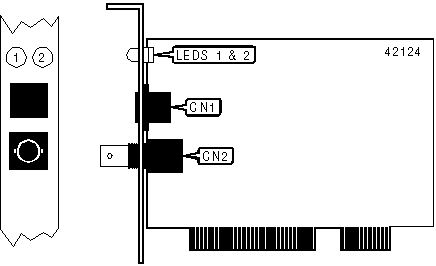

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
RJ-45 connector |
CN1 |
RG-58A/U connector |
CN2 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Yellow |
Blinking |
Data is being transmitted/received |
|
LED1 |
Yellow |
Off |
Data is not being transmitted/received |
|
LED2 |
Green |
On |
UTP link is good |
|
LED2 |
Green |
Off |
UTP link is broken |
|
|
|
|
 |
|
