M8154 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / R / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
M8154 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
RACORE COMPUTER PRODUCTS, INC.
M8154
|
Card Type |
Network Interface Card |
|
NIC Type |
Token Ring |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Available |
|
Network Transfer Rate |
4/16Mbps |
|
Topology |
Ring |
|
Wiring Type |
Shielded twisted pair Unshielded twisted pair |
|
Data Bus |
32-bit PCI |
|

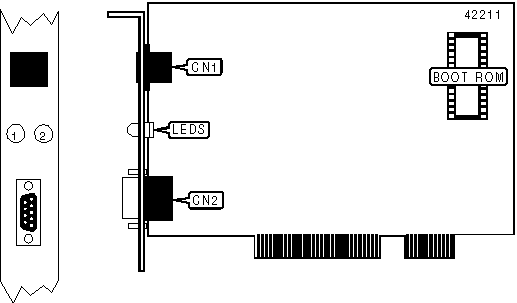

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
UTP via RJ-45 connector |
CN1 |
STP via DB-9 connector |
CN2 |
|
DIAGNOSTIC LED(S) |
|
Note: Colors and functions of LEDs are unidentified. |
|
|
|
|
 |
|
