INTERLAN MCA (TP) Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
RACAL INTERLAN, INC.
INTERLAN MCA (TP)
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
MCA |
|
Topology |
Linear bus Star |
|
Wiring Type |
Twisted pair AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|

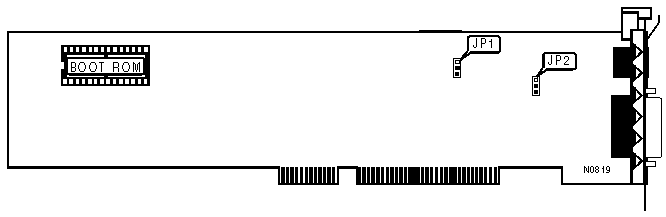

CABLE TYPE SELECT | ||
|
Setting |
JP1 | |
| » |
Autodetect (Twisted pair) |
Pins 1 & 2 closed |
|
Thick Ethernet |
Pins 2 & 3 closed | |
|
LINK STATUS SIGNAL SELECT | ||
|
Setting |
JP2 | |
| » |
Enabled |
Pins 2 & 3 closed |
|
Disabled |
Pins 1 & 2 closed | |
|
|
|
|
 |
|
