PROXIM, INC.
RANGELAN2 7400
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
1.6Mbps |
|
Topology |
Peer - Peer, Star, Linear Bus |
|
Wiring Type |
Wireless |
|
Data Bus |
PCMCIA Type II |
|

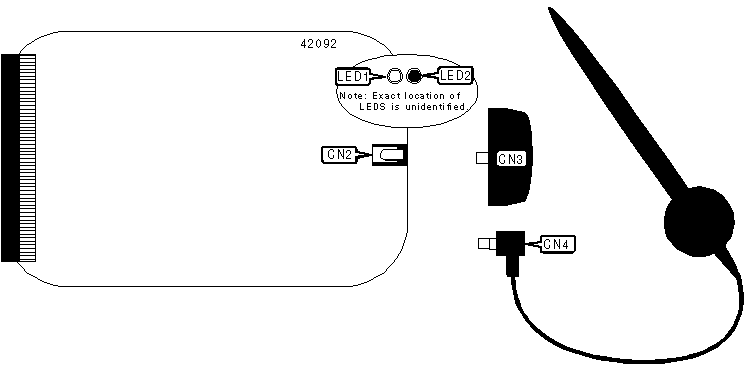

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Antenna receptacle |
CN2 |
Tethered dipole antenna |
CN4 |
|
Snap-on antenna |
CN3 | ||
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Yellow |
On |
Data is being transmitted |
|
LED1 |
Yellow |
Off |
Data is not being transmitted |
|
LED2 |
Green |
On |
Collision detected on network |
|
LED2 |
Green |
Off |
No collision detected on network |
|
MISCELLANEOUS TECHNICAL NOTES |
|
There must be at least one other RangeLAN2 wireless node on the network before a wireless connection can be made. |
|
|
|
|
 |
|
