PRONET-4/16 MODEL P1990 PLUS Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
PROTEON, INC.
PRONET-4/16 MODEL P1990 PLUS
|
Card Type |
Token Ring |
|
Data Bus |
EISA |
|
Maximum Network Rate |
4/16Mbps |
|
Topology |
Ring |
|
Wiring Type |
Shielded twisted pair Unshielded twisted pair |
|
Boot ROM |
Available (location unidentified) |
|

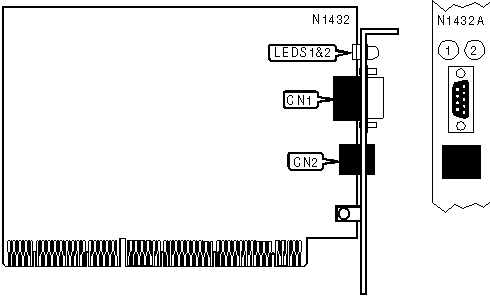

CONNECTIONS | |
|
Function |
Label |
|
Shielded twisted pair port |
CN1 |
|
Unshielded twisted pair port |
CN2 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Yellow |
On |
Network connection is good |
|
LED1 |
Yellow |
Off |
Network connection is broken |
|
LED2 |
Green |
On |
Data is being transmitted/received |
|
LED2 |
Green |
Off |
Data is not being transmitted/received |
|
Note: The exact location of LED1 & LED2 is unidentified. | |||
|
|
|
|
 |
|
