PRONET/E MODEL P1470-EA Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
PROTEON, INC.
PRONET/E MODEL P1470-EA
|
Card Type |
Ethernet |
|
Data Bus |
PCMCIA |
|
Maximum network Rate |
10Mbps/100Mbps |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Boot ROM |
Not available |
|

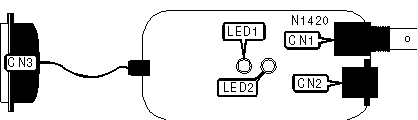

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
RG-58A/U 50ohm coaxial port |
CN1 |
15-pin flat connector |
CN3 |
|
Unshielded twisted pair port |
CN2 | ||
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
Blinking |
Data is being transmitted/received |
|
LED1 |
Green |
Off |
Data is not being transmitted/received |
|
LED2 |
Green |
On |
10Base-T network connection is good |
|
LED2 |
Green |
Off |
10Base-T network connection is broken |
|
Note: The exact location of LED1 and LED2 is unidentified. | |||
|
|
|
|
 |
|
