SMART COM PCI (ENW-8300) Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
PLANET TECHNOLOGY CORPORATION
SMART COM PCI (ENW-8300)
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
10Mbps |
|
Data Bus |
32-bit PCI |
|
Topology |
Linear Bus, Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|

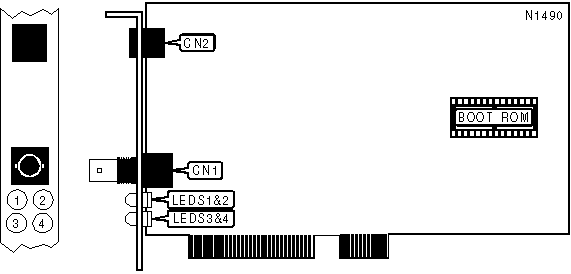

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
RG-58A/U 50ohm coaxial port |
CN1 |
Unshielded twisted pair port |
CN2 |
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
On |
Collision is detected on network |
|
LED1 |
Off |
Collision is not detected on network |
|
LED2 |
Blinking |
Data is being received |
|
LED2 |
Off |
Data is not being received |
|
LED3 |
On |
10Base-T network connection is detected |
|
LED3 |
Off |
10Base-T network connection is not detected |
|
LED4 |
Blinking |
Data is being transmitted |
|
LED4 |
Off |
Data is not being transmitted |
|
|
|
|
 |
|
