2127 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / P / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
2127 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
PATTON ELECTRONICS COMPANY
2127
|
Card Type |
Parallel Print Server |
|
Chip Set |
Unidentified |
|
NIC Type |
Ethernet |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
10Mbps |
|
Wiring Type |
Fiber optic cable |
|
Data Bus |
External |
|

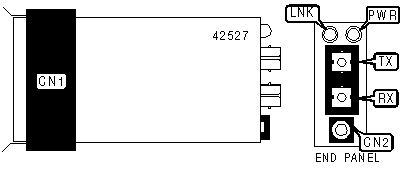

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Centronics parallel port |
CN1 |
Fiber optic connector (ST) - receive |
RX |
|
Power |
CN2 |
Fiber optic connector (ST) - transmit |
TX |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LNK |
Unidentified |
On |
Network link is good |
|
LNK |
Unidentified |
Off |
Network link is broken |
|
PWR |
Unidentified |
On |
Power is on |
|
PWR |
Unidentified |
Off |
Power is off |
|
|
|
|
 |
|
