KING OF DIAMONDS Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / O / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
KING OF DIAMONDS Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
OSITECH COMMUNICATIONS, INC.
KING OF DIAMONDS
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
PCMCIA |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Boot ROM |
Not available |
|
CONNECTIONS(S) | |
|
Purpose |
Location |
|
Audio connector |
S1 |
|
Media Access Module |
S2 |
|
Media Access Module |
S2A |
|

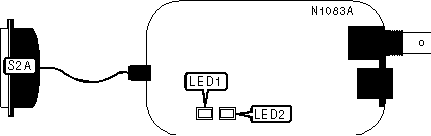

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Red |
On |
Data is being transmitted/received |
|
LED1 |
Red |
Off |
Data is not being transmitted/received |
|
LED2 |
Green |
On |
Network connection is good |
|
LED2 |
Green |
Off |
Network connection is broken |
|
|
|
|
 |
|
