OLICOM. INC.
OC-3411
|
Card Type |
Network Interface Card |
|
NIC Type |
Token Ring |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Available |
|
Network Transfer Rate |
4/16Mbps |
|
Topology |
Star, Ring |
|
Wiring Type |
Shielded twisted pair Unshielded twisted pair |
|
Data Bus |
16-bit ISA |
|

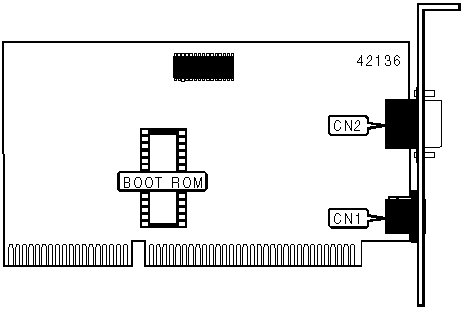

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
UTP via RJ-45 connector |
CN1 |
STP via 9-pin connector |
CN2 |
|
|
|
|
 |
|
