RAPIDFIRE 6161 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / O / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
RAPIDFIRE 6161 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
OLICOM, INC.
RAPIDFIRE 6161
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet, Token Ring |
|
Maximum Onboard Memory |
1MB |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
155Mbps |
|
Topology |
Star, Ring |
|
Wiring Type |
Unshielded twisted pair |
|
Data Bus |
64-bit PCI |
|
CONNECTIONS | |
|
Function |
Label |
|
RJ-45 UTP connector |
CN1 |
|

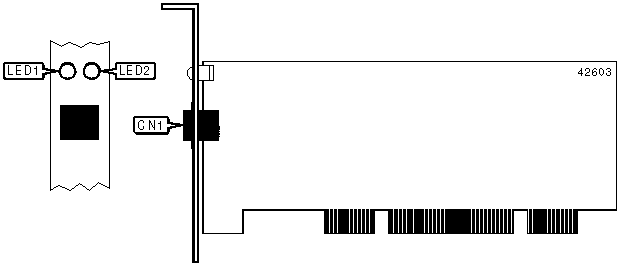

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Network connection is good |
|
LED1 |
Green |
Off |
Network connection is not good |
|
LED2 |
Yellow |
On |
Signal has been lost |
|
LED2 |
Yellow |
Off |
Signal is detected |
|
|
|
|
 |
|
