UTP16C Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / N / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
UTP16C Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
NETWORTH, INC.
UTP16C
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear bus Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Available |
|

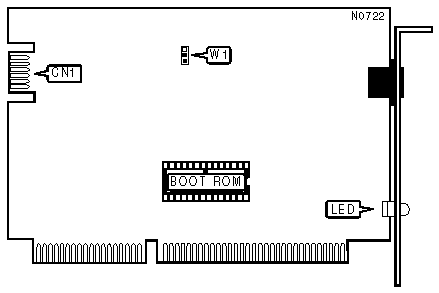

BOOT ROM | ||
|
Setting |
W1 | |
| » |
Disabled |
Pins 2 & 3 closed |
|
Enabled |
Pins 1 & 2 closed | |
|
DIAGNOSTIC LED | ||
|
Color |
Status |
Condition |
|
Green |
On |
Network connection is good |
|
Green |
Off |
Network connection is broken |
|
MISCELLANEOUS TECHNICAL NOTE |
|
Note:CN1 is used by the manufacturer for testing purposes and should not be used. |
|
|
|
|
 |
|
