NDC COMMUNICATIONS, INC.
OPENTOKEN/16MM
|
NIC Type |
Token Ring |
|
Transfer Rate |
4/16Mbps |
|
Data Bus |
MCA |
|
Topology |
Ring |
|
Wiring Type |
Shielded twisted pair |
|
Boot ROM |
Available |
|

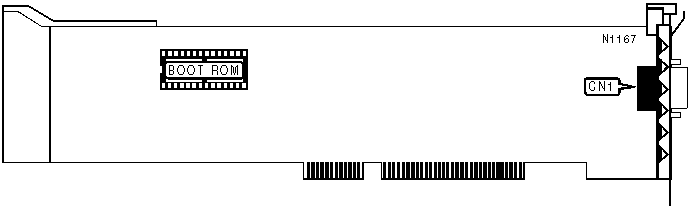

CONNECTIONS | |
|
Purpose |
Location |
|
9-pin video port |
CN1 |
|
|
|
|
 |
|
