ND5220 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / N / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
ND5220 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
NDC COMMUNICATIONS, INC.
ND5220
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
10Mbps |
|
Data Bus |
32-bit PCI |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Not available |
|
CONNECTIONS | |
|
Function |
Label |
|
Unshielded twisted pair port |
CN1 |
|

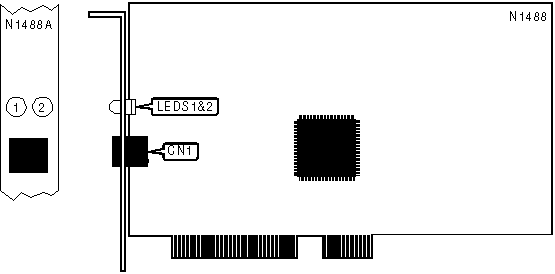

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Red |
Blinking |
Data is being transmitted/received |
|
LED1 |
Red |
Off |
Data is not being transmitted/received |
|
LED2 |
Green |
On |
10Base-T network connection is good |
|
LED2 |
Green |
Off |
10Base-T network connection is broken |
|
|
|
|
 |
|
