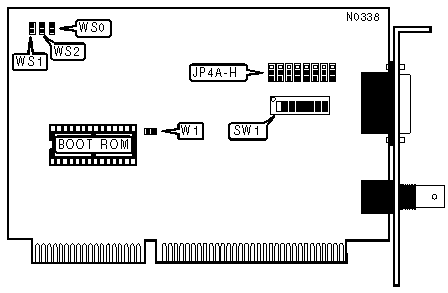

LNI390A (16-BIT ISA) Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
MYLEX CORPORATION
LNI390A (16-BIT ISA)
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
RG58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
CABLE TYPE | |
|
Type |
JP4A - JP4H |
|
RG58A/U 50ohm coaxial |
Pins 1 & 2 closed |
|
AUI transceiver via DB-15 port |
Pins 2 & 3 closed |
|
BOOT ROM | ||
|
Setting |
W1 | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
WAIT STATE | ||||
|
Setting |
WS0 |
WS1 |
WS2 | |
| » |
System wait states |
Open |
Open |
Open |
|
0 wait states |
Closed |
Open |
Open | |
|
1 wait state |
Open |
Closed |
Open | |
|
2 wait states |
Open |
Open |
Closed | |
|
CARD CONFIGURATION (PREVIOUS TO REV. D) | ||||||||||||
|
Option |
I/O |
IRQ |
Base Memory |
Boot ROM |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
1 |
300h |
3 |
CC000h |
CA000h |
Off |
On |
On |
On |
On |
On |
On |
On |
|
2 |
320h |
2 |
C4000h |
C8000h |
On |
On |
On |
Off |
On |
Off |
Off |
On |
|
3 |
340h |
4 |
D0000h |
D4000h |
On |
Off |
On |
On |
Off |
Off |
On |
On |
|
4 |
360h |
5 |
D8000h |
D6000h |
On |
On |
Off |
Off |
Off |
On |
Off |
On |
|
5 |
300h |
2 |
DC000h |
N/A |
Off |
Off |
On |
On |
On |
Off |
Off |
On |
|
6 |
320h |
3 |
C4000h |
C8000h |
On |
On |
On |
Off |
On |
On |
On |
On |
|
7 |
340h |
5 |
CC000h |
CA000h |
Off |
On |
On |
On |
Off |
On |
Off |
On |
|
8 |
360h |
4 |
D0000h |
D4000h |
Off |
Off |
On |
Off |
Off |
Off |
On |
On |
|
9 |
300h |
4 |
D8000h |
D6000h |
On |
On |
Off |
On |
On |
Off |
On |
On |
|
10 |
320h |
5 |
DC000h |
N/A |
Off |
Off |
On |
Off |
On |
On |
Off |
On |
|
11 |
340h |
2 |
C4000h |
C8000h |
On |
On |
On |
On |
Off |
Off |
Off |
On |
|
12 |
360h |
3 |
CC000h |
CA000h |
Off |
On |
On |
Off |
Off |
On |
On |
On |
|
Note:The second, third, and fourth options can be used by separate cards in the same system at the same time without conflicts.
| ||||||||||||
|
CARD CONFIGURATION (REV. D) | ||||||||||||
|
Option |
I/O |
IRQ |
Base Memory |
Boot ROM |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
1 |
300h |
3 |
CC000h |
CA000h |
Off |
On |
On |
On |
On |
Off |
Off |
Off |
|
2 |
320h |
2 |
C4000h |
C8000h |
On |
On |
On |
Off |
On |
Off |
Off |
On |
|
3 |
340h |
4 |
D0000h |
D4000h |
On |
Off |
On |
On |
Off |
On |
Off |
Off |
|
4 |
360h |
5 |
D8000h |
D6000h |
On |
On |
Off |
Off |
Off |
Off |
On |
Off |
|
5 |
300h |
2 |
DC000h |
N/A |
Off |
Off |
On |
On |
On |
Off |
Off |
On |
|
6 |
320h |
3 |
C4000h |
C8000h |
On |
On |
On |
Off |
On |
Off |
Off |
Off |
|
7 |
340h |
5 |
CC000h |
CA000h |
Off |
On |
On |
On |
Off |
Off |
On |
Off |
|
8 |
360h |
4 |
D0000h |
D4000h |
Off |
Off |
On |
Off |
Off |
On |
Off |
Off |
|
9 |
300h |
4 |
D8000h |
D6000h |
On |
On |
Off |
On |
On |
On |
Off |
Off |
|
10 |
320h |
5 |
DC000h |
N/A |
Off |
Off |
On |
Off |
On |
Off |
On |
Off |
|
11 |
340h |
2 |
C4000h |
C8000h |
On |
On |
On |
On |
Off |
Off |
Off |
On |
|
12 |
360h |
3 |
CC000h |
CA000h |
Off |
On |
On |
Off |
Off |
Off |
Off |
Off |
|
Note:The second, third, and fourth options can be used by separate cards in the same system at the same time without conflicts.
| ||||||||||||
|
|
|
|
 |
|
