COLLAGE 155 EISA (VER. 2) Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
MADGE NETWORKS, LTD.
COLLAGE 155 EISA (VER. 2)
|
Card Type |
Network Interface Card |
|
NIC Type |
ATM |
|
Maximum Onboard Memory |
256KB |
|
Boot ROM |
Unidentified |
|
Network Transfer Rate |
155Mbps |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Data Bus |
32-bit EISA |
|

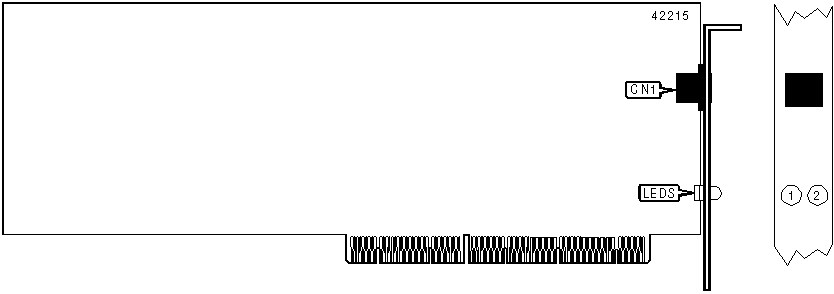

CONNECTIONS | |
|
Function |
Label |
|
UTP via RJ-45 connector |
CN1 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Yellow |
On |
Network connection is good |
|
LED1 |
Yellow |
Blinking |
Data is being transmitted/received |
|
LED1 |
Yellow |
Off |
Diagnostic failure |
|
LED2 |
Green |
On |
UTP link is good |
|
LED2 |
Green |
Off |
UTP link is broken |
|
|
|
|
 |
|
