LCS-883T-1,2,3 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
LONGSHINE MICROSYSTEM, INC.
LCS-883T-1,2,3
|
NIC Type |
Ethernet transceiver |
|
Transfer Rate |
10Mbps |
|
Data Bus |
N/A |
|
Topology |
Linear bus |
|
Wiring Type |
AUI transceiver via DB-15 port RG-58 A/U 50ohm coaxial |
|
Boot ROM |
N/A |
|

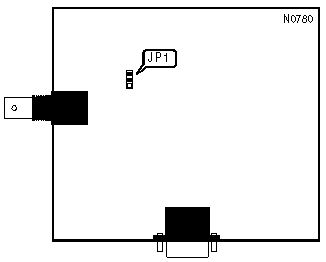

HEARTBEAT CONFIGURATION | ||
|
Setting |
JP1 | |
| » |
Disabled |
Pins 2 & 3 closed |
|
Enabled |
Pins 1 & 2 closed | |
|
Note: Heartbeat is a diagnostic function required by some LAN operating systems. | ||
|
|
|
|
 |
|
