LCS-8934-TBA Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
LONGSHINE MICROSYSTEM, INC.
LCS-8934-TBA
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
32-bit VESA |
|
Topology |
Linear bus |
|
Wiring Type |
AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial Unshielded twisted pair |
|
Boot ROM |
Available |
|

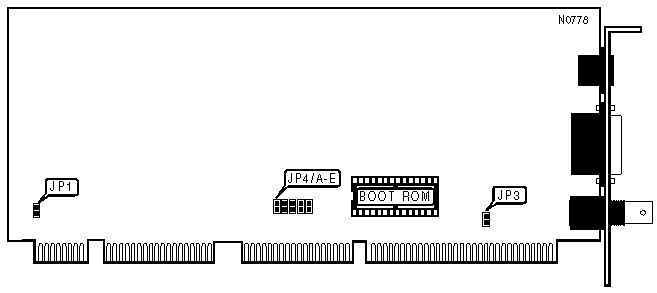

CPU SPEED | |
|
Speed |
JP1 |
|
>33Mhz |
Closed |
|
<33Mhz |
Open |
|
33Mhz |
Open |
|
ETHERNET CABLE TYPE | |
|
Type |
JP3 |
|
Thick Ethernet |
Open |
|
Thin Ethernet |
Closed |
|
INTERRUPT SELECT | |||||
|
IRQ |
JP4/A |
JP4/B |
JP4/C |
JP4/D |
JP4/E |
|
IRQ4 |
Closed |
Open |
Open |
Open |
Open |
|
IRQ5 |
Open |
Closed |
Open |
Open |
Open |
|
IRQ11 |
Open |
Open |
Closed |
Open |
Open |
|
IRQ12 |
Open |
Open |
Open |
Closed |
Open |
|
IRQ15 |
Open |
Open |
Open |
Open |
Closed |
|
|
|
|
 |
|
