PCMCIA/T II Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / L / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
PCMCIA/T II Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
LANTECH COMPUTER COMPANY
PCMCIA/T II
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
10Mbps |
|
Data Bus |
PCMCIA Type II |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Not available |
|

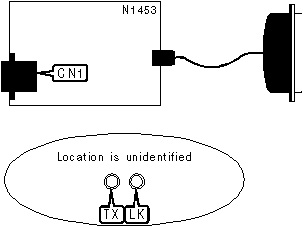

CONNECTIONS | |
|
Function |
Label |
|
Unshielded twisted pair |
CN1 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
TX |
Red |
Off |
Adapter is not transmitting data |
|
TX |
Red |
On |
Adapter is transmitting data |
|
LK |
Red |
Off |
Link integrity broken or adapter is not receiving data |
|
LK |
Red |
On |
Link integrity good or adapter is receiving data |
|
|
|
|
 |
|
