LANCAST
4216-00
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
16KB |
|
Boot ROM |
Available |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Star, linear bus |
|
Wiring Type |
Unshielded twisted pair RG-58A/U AUI transceiver via DB-15 port |
|
Data Bus |
16-bit EISA |
|

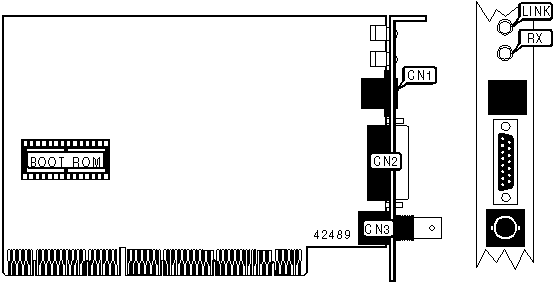

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
RJ-45 UTP connector |
CN1 |
RG-58A/U connector |
CN3 |
|
AUI transceiver via DB-15 |
CN2 | ||
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LINK |
Green |
On |
Network connection is good |
|
LINK |
Green |
Off |
Network connection is broken |
|
RX |
Green |
On |
Data is being transmitted/received |
|
RX |
Green |
Off |
Data is not being transmitted/received |
|
Note:The LED labels may be reversed and/or labeled slightly different. The actual labels are located on the face plate next to the respective LED’s. | |||
|
|
|
|
 |
|
