4116-04 Network Card Settings and Configuration
LANCAST
4116-04
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 8/16-bit ISA |
Topology | Star |
Wiring Type | Unshielded twisted pair |
Boot ROM | Available |

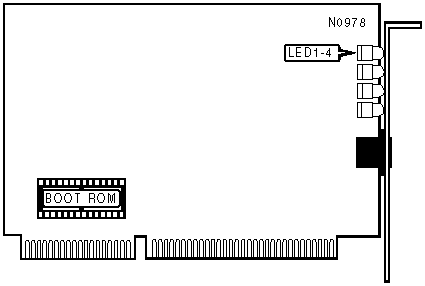

DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Yellow | On | Data is being transmitted/received |
LED1 | Yellow | Off | Data is not being transmitted/received |
LED2 | Yellow | On | Network colisions detected |
LED2 | Yellow | Off | No network colisions detected |
LED3 | Green | On | Network connection is goood |
LED3 | Green | Off | Network connection is broken |
LED4 | Yellow | On | Polarity correction enabled |
LED4 | Yellow | Off | Polarity correction disabled |
