GE2500 PCI Network Card Settings and Configuration







KYE INTERNATIONAL CORPORATION

GE2500 PCI

NIC Type

Ethernet

Network Transfer Rate

10Mbps

Data Bus

PCI

Topology

Linear Bus, Star

Wiring Type

Unshielded twisted pair

AUI transceiver via DB-15 port

RG-58A/U 50ohm coaxial

Boot ROM

Not available

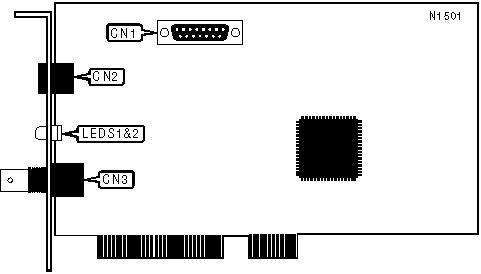

CONNECTIONS

Function

Label

Function

Label

AUI transceiver via DB-15 port

CN1

RG-58A/U 50ohm coaxial port

CN3

Unshielded twisted pair port

CN2



DIAGNOSTIC LED(S)

Note: The purpose of LED1 and LED2 are unidentified.
