KTN-901 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
KT TECHNOLOGY PTE LTD.
KTN-901
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Unshielded twisted pair AUI Transceiver via DB-15 port |
|
Boot ROM |
Available |
|

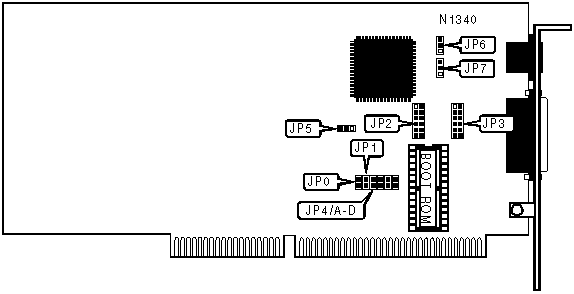

CABLE TYPE SELECTION | |||
|
Cable Type |
JP2 |
JP3 |
JP7 |
|
Unshielded twisted pair |
Open |
Open |
pins 1 & 2 closed |
|
AUI Transceiver via DB-15 port |
Open |
Closed |
pins 2 & 3 closed |
|
BASE I/O ADDRESS SELECTION | |||
|
Address |
JP0 |
JP1 | |
| » |
300h |
Closed |
Closed |
|
320h |
Open |
Closed | |
|
340h |
Closed |
Open | |
|
360h |
Open |
Open | |
|
INTERRUPT CONFUGURATION | ||||
|
Address |
JP4/A |
JP4/B |
JP4/C |
JP4/D |
|
3 |
Open |
Closed |
Open |
Open |
|
4 |
Open |
Open |
Closed |
Open |
|
5 |
Open |
Open |
Open |
Closed |
|
9 |
Closed |
Open |
Open |
Open |
|
BOOT ROM CONFIGURATION | |
|
Setting |
JP5 |
|
Enabled |
pins 1 & 2 closed |
|
Disabled |
pins 2 & 3 closed |
|
|
|
|
 |
|
