ETHERX KNE2102+ Network Card Settings and Configuration







KINGSTON TECHNOLOGY CORPORATION

ETHERX KNE2102+

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Linear Bus

Wiring Type

RG-58A/U 50ohm coaxial

Boot ROM

Available

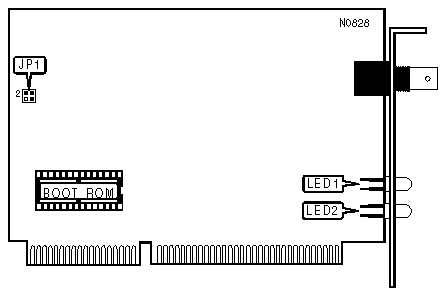

BOARD NUMBER SELECTION

Board Number

JP1

1

Pins 1 & 2, 3 & 4 closed

2

Pins 3 & 4 closed

3

Pins 1 & 2 closed

4

Open

DIAGNOSTIC LEDS

LED

Color

Status

Condition

LED1

Green

On

Network connection is good

LED1

Green

Off

Network connection is broken

LED2

Yellow

On

Polarity normal

LED2

Yellow

Off

Polarity reversed
