ETHERX KNE2100T+ Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / K / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
ETHERX KNE2100T+ Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
KINGSTON TECHNOLOGY CORPORATION
ETHERX KNE2100T+
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Available |
|

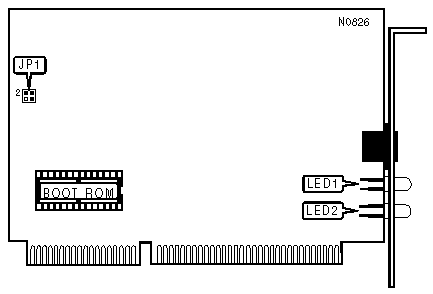

BOARD NUMBER SELECTION | |
|
Board Number |
JP1 |
|
1 |
Pins 1 & 2, 3 & 4 closed |
|
2 |
Pins 3 & 4 closed |
|
3 |
Pins 1 & 2 closed |
|
4 |
Open |
|
DIAGNOSTIC LEDS | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Network connection is good |
|
LED1 |
Green |
Off |
Network connection is broken |
|
LED2 |
Yellow |
On |
Polarity normal |
|
LED2 |
Yellow |
Off |
Polarity reversed |
|
|
|
|
 |
|
