KATRON TECHNOLOGIES, INC.
KF-220TX
NIC Type | Ethernet |
Network Transfer Rate | 10/100Mbps |
Data Bus | 32-bit PCI |
Topology | Star |
Wiring Type | Unshielded twisted pair |
Boot ROM | Not available |

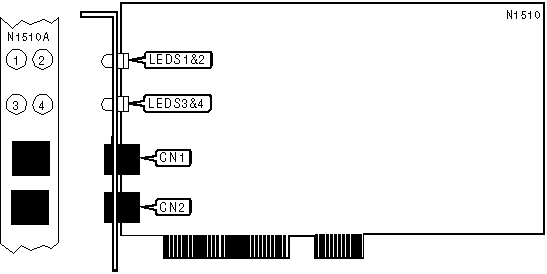

CONNECTIONS | |||
Function | Label | Function | Label |
Unshielded twisted pair port (100Mbps) | CN1 | Unshielded twisted pair port (10Mbps) | CN2 |
DIAGNOSTIC LED(S) | ||
LED | Status | Condition |
LED1 | On | 10Mbps mode is selected |
LED1 | Off | 10Mbps mode is not selected |
LED2 | On | 100Mbps mode is selected |
LED2 | Off | 100Mbps mode is not selected |
LED3 | Blinking | Data is being transmitted/received |
LED3 | Off | Data is not being transmitted/received |
LED4 | On | Network connection is good |
LED4 | Off | Network connection is broken |
