KATRON TECHNOLOGIES, INC.
DP32E2
|
NIC Type |
100VG (Ethernet compatible) |
|
Network Transfer Rate |
10/100Mbps |
|
Data Bus |
EISA |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Available |
|

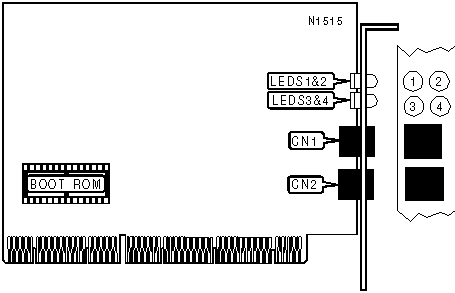

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Unshielded twisted pair port (100VG) |
CN1 |
Unshielded twisted pair port (10Base-T) |
CN2 |
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
On |
100Mbps operation is selected |
|
LED1 |
Off |
100Mbps operation is not selected |
|
LED2 |
On |
10Mbps operation is selected |
|
LED2 |
Off |
10Mbps operation is not selected |
|
LED3 |
On |
Network connection is good |
|
LED3 |
Off |
Network connection is broken |
|
LED4 |
On |
Data is being transmitted/received |
|
LED4 |
Off |
Data is not being transmitted/received |
|
|
|
|
 |
|
