ET-32PCI Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / K / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
ET-32PCI Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
KATRON
ET-32PCI
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
PCI |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Boot ROM |
Not available |
|

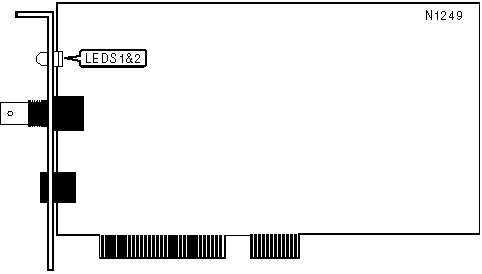

DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
On |
10Base-T polarity is reversed |
|
LED1 |
Off |
10Base-T polarity is normal |
|
LED2 |
On |
10Base-T network connection is good |
|
LED2 |
Blinking |
10Base-T network connection is faulty |
|
LED2 |
Off |
10Base-T network connection is broken |
|
|
|
|
 |
|
