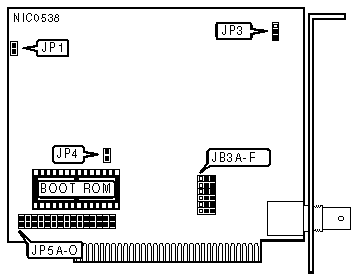

ETHERNET 1000 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Linear bus
Wiring Type	RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

CABLE TYPE
Type		JB3A - JB3F	JP3
»	RG-58A/U 50ohm coaxial	Pins 2 & 3 closed	Pins 2 & 3 closed
	AUI transceiver via DB-15 port	Pins 1 & 2 closed	Pins 1 & 2 closed

BOOT ROM
Setting		JP4
»	Disabled	Open
	Enabled	Closed

I/O BASE ADDRESS
I/O Address	JP5A	JP5B	JP5C
300 - 31Fh	Closed	Closed	Closed
320 - 33Fh	Closed	Closed	Open
340 - 35Fh	Closed	Open	Closed
360 - 37Fh	Closed	Open	Open

INTERRUPT REQUEST
IRQ		JP5D	JP5E	JP5F	JP5G
	2/9	Closed	Open	Open	Open
»	3	Open	Closed	Open	Open
	4	Open	Open	Closed	Open
	5	Open	Open	Open	Closed

DMA CHANNEL
Channel		JP5H	JP5I	JP5J	JP5K
»	Disabled	Open	Open	Open	Open
	DMA1	Open	Closed	Open	Closed
	DMA3	Closed	Open	Closed	Open

BOOT ROM ADDRESS
Address		JP5L	JP5M	JP5N	JP5O
	C0000h	Closed	Closed	Closed	Closed
	C4000h	Open	Closed	Closed	Closed
»	C8000h	Closed	Open	Closed	Closed
	CC000h	Open	Open	Closed	Closed
	D0000h	Closed	Closed	Open	Closed
	D4000h	Open	Closed	Open	Closed
	D8000h	Closed	Open	Open	Closed
	DC000h	Open	Open	Open	Closed

FACTORY CONFIGURED SETTINGS
Jumper	Setting
JP1	Closed
