ETHER EXPRESS PRO 100+ PCI Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
INTEL CORPORATION
ETHER EXPRESS PRO 100+ PCI
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
10/100Mbps |
|
Data Bus |
32-bit PCI |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Available |
|
CONNECTIONS | |
|
Function |
Label |
|
Unshielded twisted pair port |
CN1 |
|

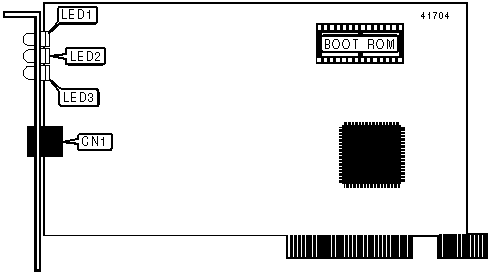

DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
On |
10Base-T network connection is good |
|
LED1 |
Off |
10Base-T network connection is broken |
|
LED2 |
On |
Data is being transmitted/received |
|
LED2 |
Off |
Data is not being transmitted/received |
|
LED3 |
On |
100Base-TX network connection is good |
|
LED3 |
Off |
100Base-TX network connection is broken |
|
|
|
|
 |
|
