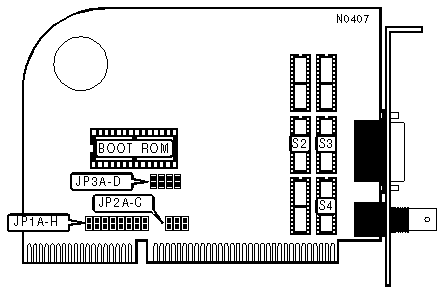

IMC NETWORK CORPORATION
ETHERNIC/2000
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 8/16-bit ISA |
Topology | Linear Bus |
Wiring Type | RG--58A/U 50ohm coaxial RG--62A/U 93ohm coaxial 75ohm coaxial AUI transceiver via DB-15 port |
Boot ROM | Available |
INTERRUPT REQUEST | |||||||||
IRQ | JP1A | JP1B | JP1C | JP1D | JP1E | JP1F | JP1G | JP1H | |
2/9 | Open | Open | Open | Closed | Open | Open | Open | Open | |
» | 3 | Closed | Open | Open | Open | Open | Open | Open | Open |
4 | Open | Closed | Open | Open | Open | Open | Open | Open | |
5 | Open | Open | Closed | Open | Open | Open | Open | Open | |
10 | Open | Open | Open | Open | Closed | Open | Open | Open | |
11 | Open | Open | Open | Open | Open | Closed | Open | Open | |
12 | Open | Open | Open | Open | Open | Open | Closed | Open | |
15 | Open | Open | Open | Open | Open | Open | Open | Closed | |
Note:If a Boot ROM is installed, see the I/O base address & Boot ROM address table for valid interrupt settings. |
COMPATIBILITY MODE | |||
Setting | JP2A | JP2B | |
» | Disabled | Closed | Open |
Enabled | Open | Closed | |
Note:On some systems the data bus timing is not truly IBM PC/AT compatible. If the card is not initializing enabling compatibility mode may allow the card to operate properly.
|
DATA BUS SIZE | ||
Setting | JP2C | |
» | Autosense | Closed |
8-bit | Open | |
Note:In autosense mode the card automatically detects if it is in a 16-bit or 8-bit slot. On some Rev. 01 cards this jumper is incorrectly labeled TURBO.
|
I/O BASE ADDRESS & BOOT ROM ADDRESS | |||||
I/O Address | Boot ROM Address | JP3A | JP3B | JP3C | |
200 | N/A | Open | Open | Open | |
220 | N/A | Closed | Open | Open | |
240 | N/A | Open | Closed | Open | |
260 | N/A | Closed | Closed | Open | |
» | 300 | C8000h (IRQ3) | Open | Open | Closed |
320 | CC000h (IRQ5) | Closed | Open | Closed | |
340h | D0000h (IRQ4) | Open | Closed | Closed | |
360h | N/A | Closed | Closed | Closed | |
Note:If a boot ROM is to be installed one of the I/O address configurations with a boot ROM address must be used and the indicated IRQ must be set.
|
BOOT ROM | ||
Setting | JP3D | |
» | Disabled | Closed |
Enabled | Open |
CABLE TYPE | ||||
Type | S2 | S3 | S4 | |
» | RG--58A/U 50ohm coaxial | Installed | Open | 50ohm (P/N 90-39050) |
RG--62A/U 93ohm coaxial | Installed | Open | 93ohm (P/N 90-39093) | |
75ohm coaxial | Installed | Open | 75ohm (P/N 90-39075) | |
AUI transceiver via DB-15 port | Open | Installed | N/A | |
Note:S2 and S3 are sockets for a transformer chip while S4 is a socket for a Cabling Option Resistor Kit (CORK). To choose a cable type insert the appropriate chips into the appropriate sockets. All cards on the
network segment must use the same type of coaxial cable.
|
