HEWLETT-PACKARD COMPANY
HP J2973A
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
10Mbps |
|
Data Bus |
32-bit PCI |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Available (location unidentified) |
|

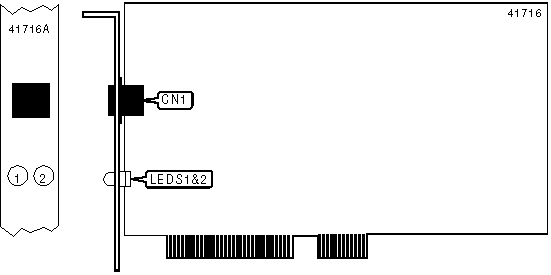

CONNECTIONS | |
|
Function |
Label |
|
Unshielded twisted pair port |
CN1 |
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
On |
Network connection is good |
|
LED1 |
Off |
Network connection is broken |
|
LED2 |
On |
Data is being transmitted/received |
|
LED2 |
Off |
Data is not being transmitted/received |
|
|
|
|
 |
|
