GLOBAL DATA SUPPLY
MAC TRANSCEIVER-T
Device Type | Transceiver |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Not available |
Network Transfer Rate | 10Mbps |
Topology | Star |
Wiring Type | RJ-45 Unshielded twisted pair AUI transceiver via DB-15 port |
Data Bus | External |

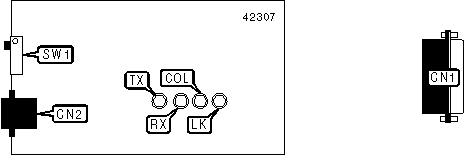

CONNECTIONS | |||
Function | Label | Function | Label |
AUI transceiver via DB-15 | CN1 | RJ-45 UTP connector | CN2 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
» | SQE test function disabled | SW1 | Off |
SQE test function enabled | SW1 | On |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
TX | Unidentified | Blinking | Data is being transmitted |
TX | Unidentified | Off | Data is not being transmitted |
RX | Unidentified | Blinking | Data is being received |
RX | Unidentified | Off | Data is not being received |
COL | Unidentified | Blinking | Collision detected on network |
COL | Unidentified | Off | No collision detected on network |
LK | Unidentified | Blinking | UTP link is good |
LK | Unidentified | Off | UTP link is broken |
