MAGNUM MII-FX (FIBER SC) Network Card Settings and Configuration

Card Type	Ethernet Transceiver
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	100Mbps
Topology	Star
Wiring Type	Fiber optic, MII
Data Bus	External

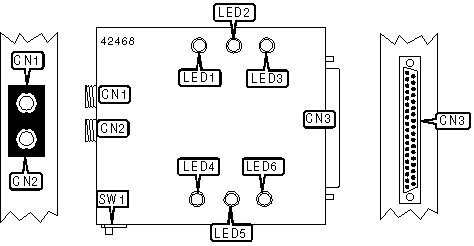

CONNECTIONS
Function	Label	Function	Label
Fiber SC connector	CN1	MII connector	CN3
Fiber SC connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Auto-configuring enabled	SW1	On
	Host programmable	SW1	Off
Note: Orientation of switch may vary.

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Unidentified	Blinking	Data is being transmitted
LED1	Unidentified	Off	Data is not being transmitted
LED2	Unidentified	Blinking	Data is being received
LED2	Unidentified	Off	Data is not being received
LED3	Unidentified	On	Half duplex mode
LED3	Unidentified	Off	Full duplex mode
LED4	Unidentified	On	100Mbps connection established
LED4	Unidentified	Off	100Mbps connection not established
LED5	Unidentified	Blinking	Collision detected on network
LED5	Unidentified	Off	No collision detected on network
LED6	Unidentified	On	Unit is receiving power
LED6	Unidentified	Off	Unit is not receiving power
