COAX ADAPTER (MCA) Network Card Settings and Configuration

FORVUS RESEARCH, INC.

COAX ADAPTER (MCA)

NIC Type
3270 emulator
Processor
National Semiconductor NSC8344A
Processor Speed
20MHz
Data Bus
MCA
Wire Type
Unshielded twisted pair
RG-62A/U 93ohm coaxial
Boot ROM
Not available

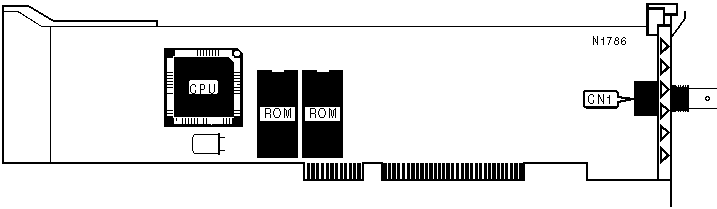

CONNECTIONS
Function
Label
RG-62A/U 93ohm coaxial connector
CN1
Note:Type 3 unshielded twisted pair cable may be attached via an included adapter cable.
