FORERUNNER PCA-200PC-RJ45 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
FORE SYSTEMS, INC.
FORERUNNER PCA-200PC-RJ45
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
256Kb RAM |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
155Mbps |
|
Topology |
Star |
|
Wiring Type |
RJ-45 Unshielded twisted pair |
|
Data Bus |
32-bit PCI |
|

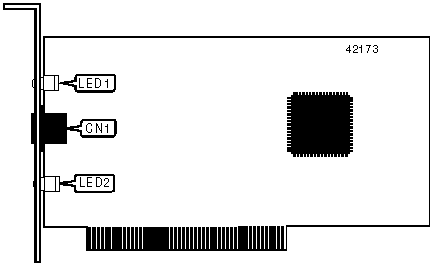

CONNECTIONS | |
|
Function |
Label |
|
RJ-45 UTP connector |
CN1 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Data is being received |
|
LED1 |
Green |
Off |
Data is not being received |
|
LED1 |
Red |
On |
Network connection is broken |
|
LED2 |
Green |
On |
Data is being transmitted |
|
LED2 |
Green |
Off |
Data is not being transmitted |
|
LED2 |
Yellow |
On |
Alarm condition declared (trouble with the receiving device) |
|
|
|
|
 |
|
