ETHERLAN LCT, ETHERLAN LCT/FPU Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
FOCUS ENHANCEMENTS, INC.
ETHERLAN LCT, ETHERLAN LCT/FPU
|
NIC Type |
Ethernet |
|
Chip Set |
National Semiconductor DP83901 |
|
Maximum Onboard Memory |
64KB SRAM |
|
NPU Options |
Motorola 68882 |
|
Network Transfer Rate |
10Mbps |
|
Data Bus |
LC PDS |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Not available |
|

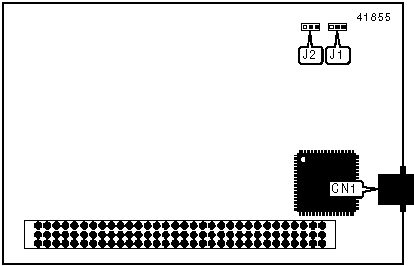

CONNECTIONS | |
|
Function |
Label |
|
Unshielded twisted pair connector |
CN1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
J1 |
Pins 1 & 2 closed |
| » |
Link function enabled |
J2 |
Pins 1 & 2 closed |
|
Link function disabled |
J2 |
Pins 2 & 3 closed | |
|
SRAM CONFIGURATION |
|
The EtherLAN LCT can have 16KB or 64KB of SRAM. The location and configuration of this memory is unidentified. |
|
|
|
|
 |
|
