FOCUS ENHANCEMENTS, INC.
ETHERLAN II
|
NIC Type |
Ethernet |
|
Chip Set |
National Semiconductor DP83902 |
|
Maximum Onboard Memory |
64KB SRAM |
|
Network Transfer Rate |
10Mbps |
|
Data Bus |
NuBus |
|
Topology |
Linear Bus |
|
Wiring Type |
AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial |
|
Boot ROM |
Not available |
|

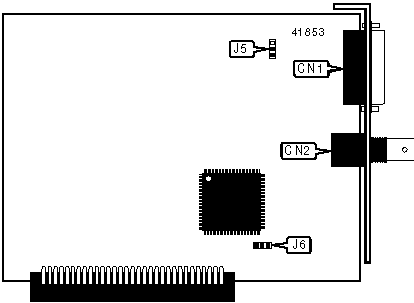

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
AUI transceiver via DB-15 port |
CN1 |
RG-58A/U 50ohm coaxial connector |
CN2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
J6 |
Pins 2 & 3 closed |
|
CABLE TYPE SELECTION | |
|
Setting |
J5 |
|
RG-58A/U 50ohm coaxial |
Pins 2 & 3 closed |
|
AUI transceiver via DB-15 port |
Open |
|
SRAM CONFIGURATION |
|
The EtherLAN II can have 16KB or 64KB of SRAM. The location and configuration of this memory is unidentified. |
|
|
|
|
 |
|
