EFA 170 SPIC3 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / E / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
EFA 170 SPIC3 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
EFA CORPORATION
EFA 170 SPIC3
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
PCI |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Boot ROM |
Not available |
|

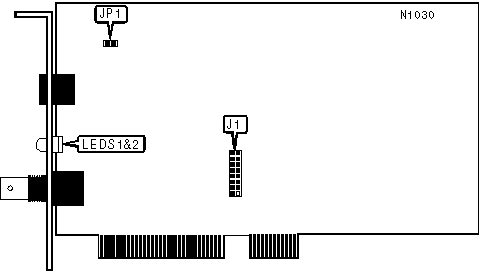

CONNECTION(S) | |
|
Purpose |
Location |
|
External LED connector |
JP1 |
|
AUI connector |
J1 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Amber |
Blinking |
Data is being transmitted/received |
|
LED1 |
Amber |
Off |
Data is not being transmitted/received |
|
LED2 |
Green |
On |
Network connection good |
|
LED2 |
Green |
Off |
Network connection broken |
|
|
|
|
 |
|
