ETHERNET 10 BASE-2 POCKET LAN ADAPTER Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
EDIMAX COMPUTER COMPANY
ETHERNET 10 BASE-2 POCKET LAN ADAPTER
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
External |
|
Topology |
Linear Bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial |
|
Boot ROM |
Not available |
|

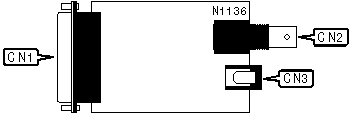

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
25-pin parallel port |
CN1 |
DC power in |
CN3 |
|
RG-58A/U 50ohm coaxial |
CN2 | ||
|
|
|
|
 |
|
