NE32HUB-BASE Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / E / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
NE32HUB-BASE Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
EAGLE TECHNOLOGY
NE32HUB-BASE
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
10Mbps x 12 |
|
Data Bus |
EISA |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Not available |
|

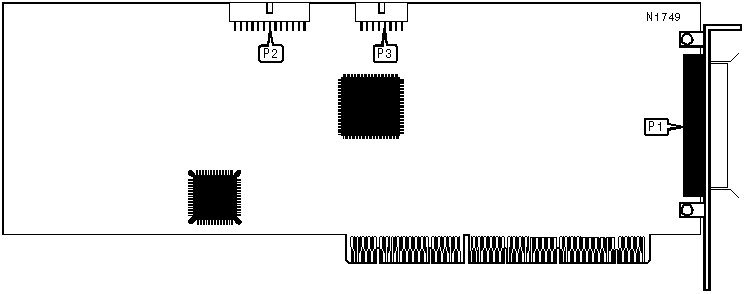

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Unshielded twisted pair ports (12) |
P1 |
NE32HUB-PME connector |
P3 |
|
NE32HUB-TPE connector |
P2 | ||
|
Note:Standard RJ-45 unshielded twisted pair connectors are provided on an included cable and external box. | |||
|
MISCELLANEOUS TECHNICAL NOTES |
|
When viewed from the rear of the machine, the NE32HUB-Base card must be installed to the left of all other NE32HUB cards. Only one NE32HUB-Base card may be installed per system. For the NE32HUB-TPE and NE32HUB-PME cards, see documents N1750 and N1751. |
|
|
|
|
 |
|
