ETHERWORKS TURBO PCI (DE434-AA) Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DIGITAL EQUIPMENT CORPORATION
ETHERWORKS TURBO PCI (DE434-AA)
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Available |
|
Network Transfer Rate |
20Mbps |
|
Topology |
Linear Bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial |
|
Data Bus |
32-bit PCI |
|
CONNECTIONS | |
|
Function |
Label |
|
RG-58A/U connector |
CN1 |
|

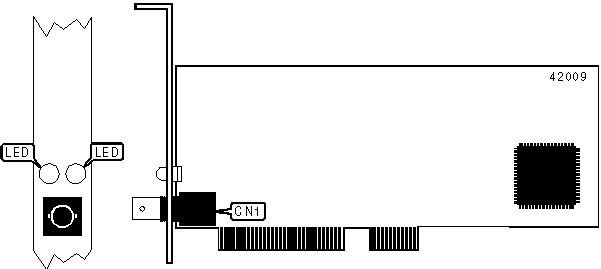

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Red |
On |
Data is being transmitted/received |
|
LED1 |
Red |
Blinking |
Data is being transmitted/received |
|
LED1 |
Red |
Off |
Data is not being transmitted/received |
|
LED2 |
Green |
On |
Network connection is good |
|
LED2 |
Green |
Blinking |
Network connection is breaking |
|
LED2 |
Green |
Off |
Network connection is broken |
|
Note: Exact location of LED’s is unidentified. | |||
|
|
|
|
 |
|
