ETHERWORKS MC Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / D / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
ETHERWORKS MC Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DIGITAL EQUIPMENT CORPORATION
ETHERWORKS MC
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit MCA |
|
Topology |
Linear bus |
|
Wiring Type |
RG58A/U 50ohm coaxial AUI transceiver via DB15 |
|
Boot ROM |
Available |
|

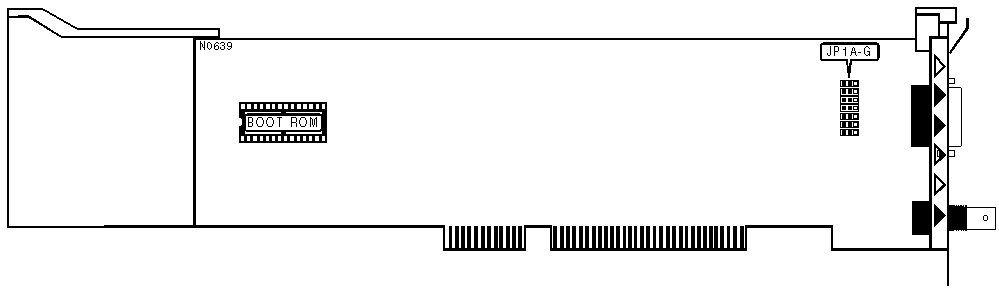

CABLE TYPE | ||
|
Type |
JP1A-G | |
| » |
RG58A/U 50ohm coaxial |
Pins 2 & 3 closed |
|
AUI transceiver via DB-15 port |
Pins 1 & 2 closed | |
|
MISCELLANEOUS NOTES |
|
Software included with the card must be used in order to fully configure it. |
|
|
|
|
 |
|
