NET-800P Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / D / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
NET-800P Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DIAMOND FLOWER, INC.
NET-800P
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Star, linear bus |
|
Wiring Type |
RJ-45 Unshielded twisted pair RG-58 A/U 50ohm coaxial |
|
Data Bus |
32-bit PCI |
|

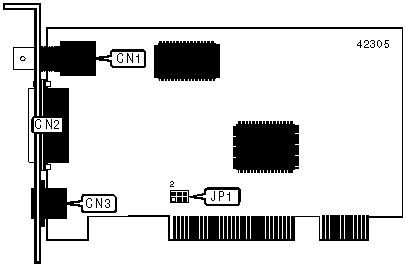

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
RG-58 A/U 50ohm coaxial |
CN1 |
RJ-45 UTP connector |
CN3 |
|
AUI transceiver via DB-15 |
CN2 | ||
|
PCI INTERRUPT SELECTION | ||
|
Setting |
JP1 | |
| » |
INTA |
Pins 1 & 3 closed |
|
INTB |
Pins 2 & 4 closed | |
|
INTC |
Pins 4 & 6 closed | |
|
INTD |
Pins 3 & 5 closed | |
|
|
|
|
 |
|
