DAVID SYSTEMS, INC.
ETHER-T MC
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit MCA |
|
Topology |
Linear Bus |
|
Wiring Type |
Shielded/Unshielded twisted pair AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
CABLE TYPE | ||
|
Type |

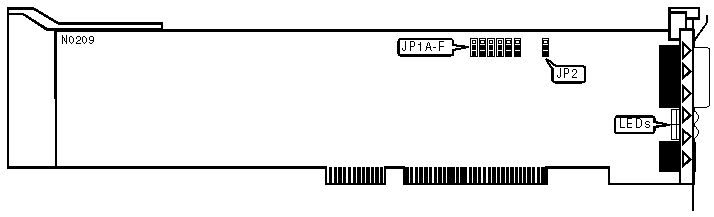

JP1A to JP1F | |
| » |
Shielded/Unshielded twisted pair |
Pins 1 & 2 Closed |
|
AUI transceiver via DB-15 port |
Pins 2 & 3 Closed | |
|
LINK TEST | ||
|
Setting |
JP2 | |
| » |
Link test signal enabled |
Pins 1 & 2 Closed |
|
Link test signal disabled |
Pins 2 & 3 Closed | |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
1 |
Red |
On |
Data is being transmitted continuously |
|
1 |
Red |
Off |
Card is operating normally |
|
2 |
Green |
On |
Card is configured correctly and link is good |
|
2 |
Green |
Off |
Card failed the link test signal |
|
3 |
Red |
On |
Data is being transmitted |
|
3 |
Red |
Off |
Data is not being transmitted |
|
4 |
Red |
On |
Data is being received |
|
4 |
Red |
Off |
Data is not being received |
|
|
|
|
 |
|
