FE-1000TX Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / D / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
FE-1000TX Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DANPEX CORPORATION
FE-1000TX
|
NIC Type |
Ethernet |
|
Transfer Rate |
10/100Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star |
|
Wiring Type |
Unshielded/shielded twisted pair |
|
Boot ROM |
Not available |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|

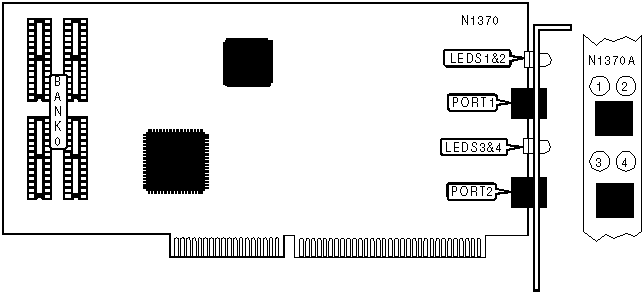

100Base-T port |
Port 1 |
10Base-T port |
Port 2 |
|
CACHE | |
|
Size |
BANK 0 |
|
128KB |
(4) 32K x 8 |
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
On |
100Base-T network connection is good |
|
LED1 |
Off |
100Base-T network connection is broken |
|
LED2 |
On |
Data is being transmitted/received at 100Mbps |
|
LED2 |
Off |
Data is not being transmitted/received at 100Mbps |
|
LED3 |
On |
10Base-T network connection is good |
|
LED3 |
Off |
10Base-T network connection is broken |
|
LED4 |
On |
Data is being transmitted/received at 10Mbps |
|
LED4 |
Off |
Data is not being transmitted/received at 10Mbps |
|
|
|
|
 |
|
